Design Features
1.Venturi port to reduce pressure loss
2.Spring protection and no impact
3.Low noise and lower water hammer damage
4.Soft seal and second metal to metal seal to ensure fire safe design
5.All valves with lifting lugs and support legs
6.No external leakage
Product Range

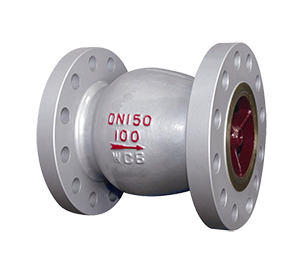

Type: Gate, Globe, Check
Size/Rating: NPS 2"~60"(DN50~DN1500)/CLASS 150 ~2500LB(PN16~PN420)
Body Materials: Cast Carbon Steel, Stainless Steel, Alloy Steel
End Connection: RF, RTJ, BW
Design Standards
Basic Design: API 600, ASME B16.34
Structure Length: ASME B16.10
End Connection: ASME B16.5,ASME B16.25, GB 9113,GB 12224
Test & Inspection: API 598,ISO 5208, JB/T9092、GB/T13927
|
